At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office…

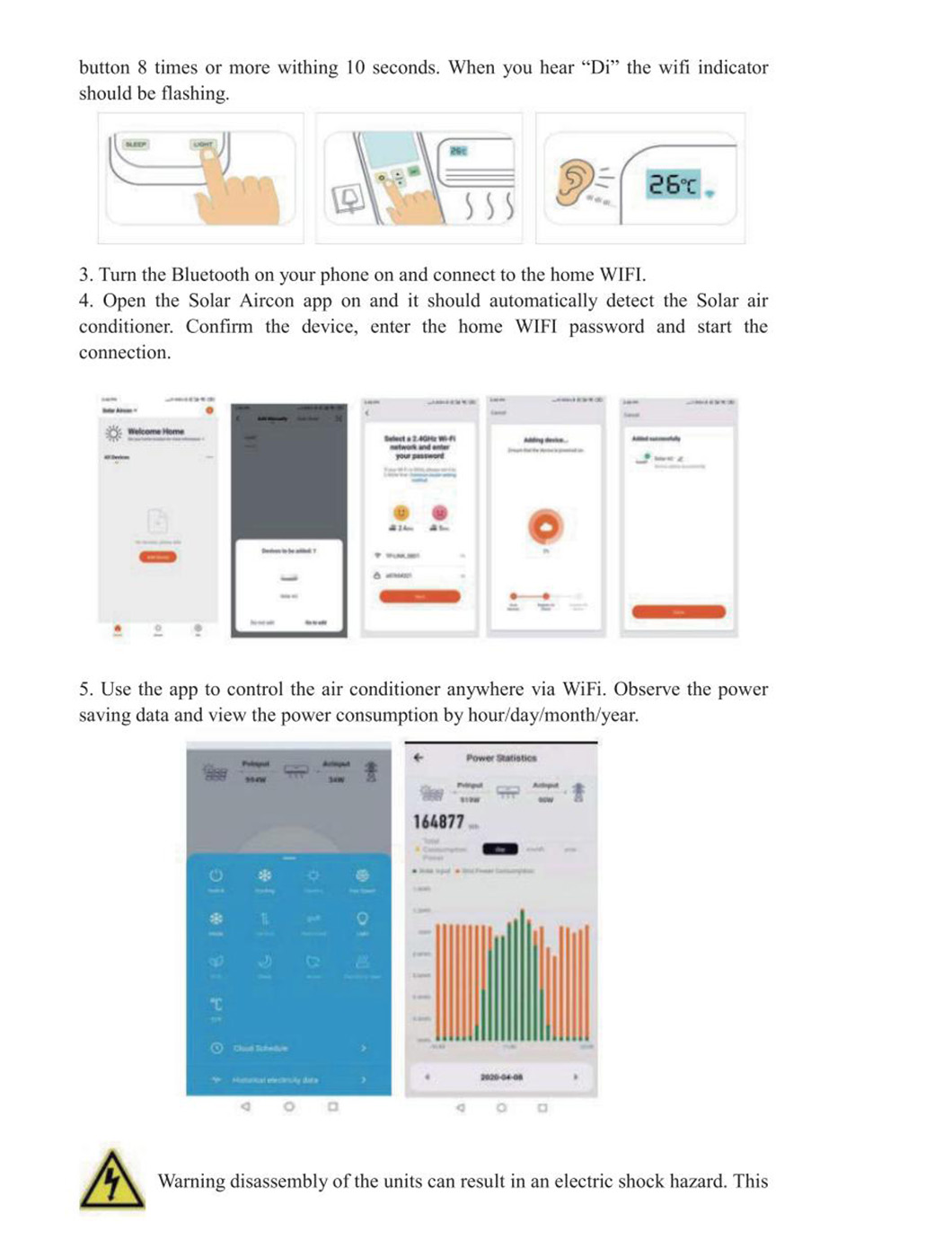

With APP monitor and control function through WIFI
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
15daysOrder(MOQ):
1
Hybrid Solar Air Conditioner is engineered from the ground up for use with solar. All electrical components are DC powered including DC Compressor, high-eficiency DC Fan Motors, DC Valves & Solenoids, etc.

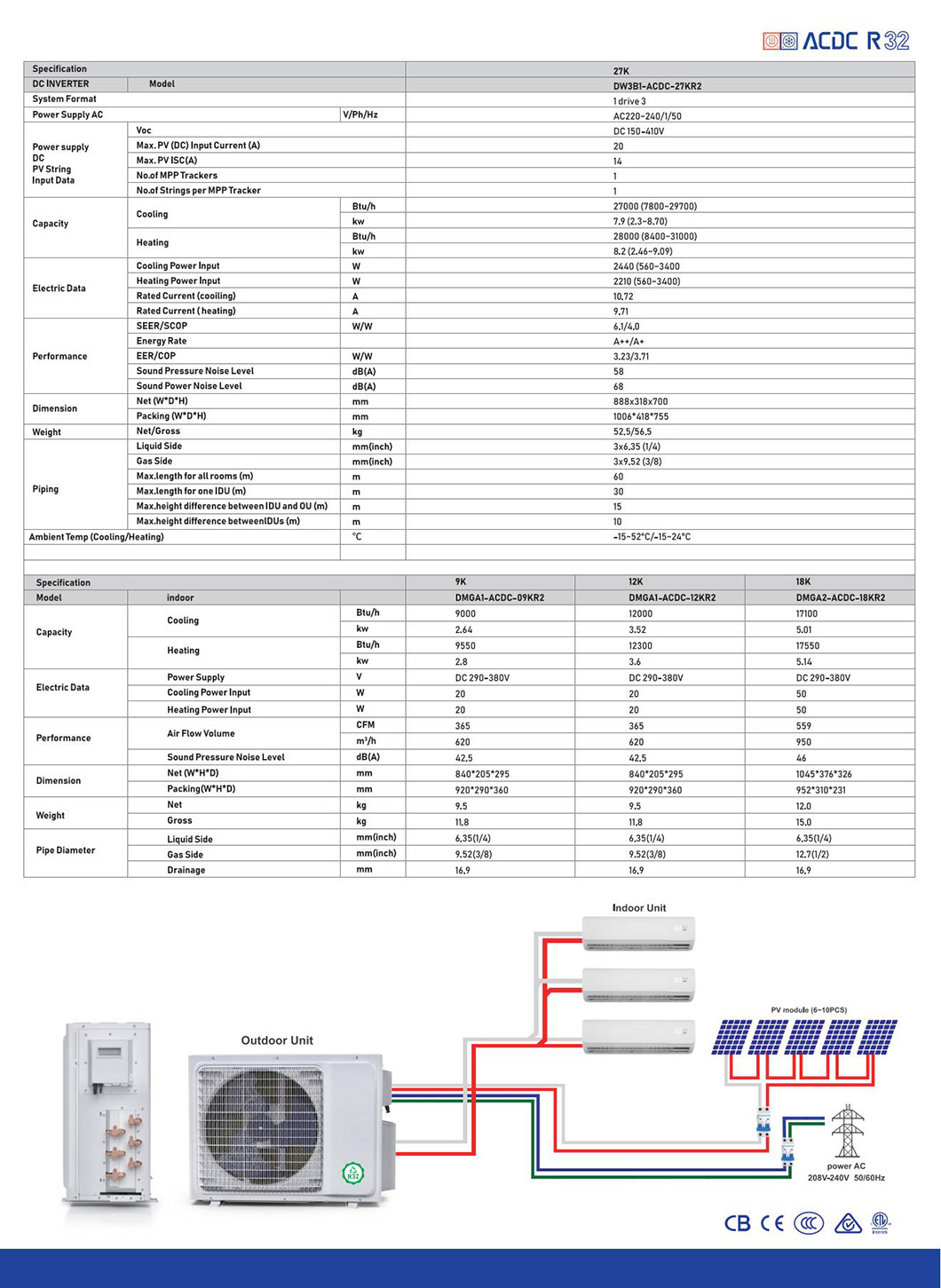

Specification of solar air conditioner
|
Specification |
27K |
|||||
|
DC INVERTER |
Model |
DW3B1 -ACDC- 27KR2 |
||||
|
System Format |
1 drive 3 |
|||||
|
Power supply AC |
V/ph/Hz |
AC220 ~ 240/1/50 |
||||
|
Powersupply |
Voc |
DC 150 - 410V |
||||
|
Max. Pv(DC) Input current (A) |
20 |
|||||
|
Max. PV ISC(A) |
14 |
|||||
|
No. of MPP Trackers |
1 |
|||||
|
No. of strings perMPPTracker |
1 |
|||||
|
Capacity |
cooling |
Btu/h |
27000 (7800 ~ 29700) |
|||
|
kw |
7 . 9 (2 . 3 ~ 8 . 70) |
|||||
|
Heating |
Btu/h |
28000 (8400 ~ 31000) |
||||
|
kw |
8 . 2 (2 . 46 ~ 9 . 09) |
|||||
|
Electric Data |
cooling power Input |
W |
2440 (560 ~ 3400 |
|||
|
Heating power Input |
W |
2210 (560 ~ 3400) |
||||
|
Rated current (cooiling) |
A |
10.72 |
||||
|
Rated current (heating) |
A |
9.71 |
||||
|
Performance |
SEER/SCOP |
W/W |
6 . 1/4 . 0 |
|||
|
Energy Rate |
|
A++/A+ |
||||
|
EER/COP |
W/W |
3 . 23/3 . 71 |
||||
|
sound pressure Noise Level |
dB(A) |
58 |
||||
|
sound power Noise Level |
dB(A) |
68 |
||||
|
Dimension |
Net(W*D*H) |
mm |
888x318x700 |
|||
|
packing(w*D*H) |
mm |
1006*418*755 |
||||
|
Weight |
Net/Gross |
kg |
52 . 5/56 . 5 |
|||
|
Piping |
Liquid side |
mm(inch) |
3x6 . 35 (1/4) |
|||
|
Gas side |
mm(inch) |
3x9 . 52 (3/8) |
||||
|
Max. length for all rooms (m) |
m |
60 |
||||
|
Max. length for one |
IDU (m) |
m |
30 |
|||
|
|
m |
15 |
||||
|
Max. height difference between lDUs (m) |
m |
10 |
||||
|
Ambient Temp (cooling/Heating) |
℃ |
- 15 ~ 52℃/- 15 ~ 24 ℃ |
||||
|
|
|
|
||||
|
|
||||||
|
specification |
9K |
12K |
18K |
|||
|
Model |
indoor |
|
DMGA1 -ACDC-09KR2 |
DMGA1 -ACDC- 12KR2 |
DMGA2 -ACDC- 18KR2 |
|
|
Capacity |
cooling |
Btu/h |
9000 |
12000 |
17100 |
|
|
kw |
2.64 |
3.52 |
5.01 |
|||
|
Heating |
Btu/h |
9550 |
12300 |
17550 |
||
|
kw |
2.8 |
3.6 |
5.14 |
|||
|
Electric Data |
power supply |
V |
DC 290 - 380V |
DC 290 - 380V |
DC 290 - 380V |
|
|
cooling power Input |
W |
20 |
20 |
50 |
||
|
Heating power Input |
W |
20 |
20 |
50 |
||
|
Performance |
Air Flow volume |
CFM |
365 |
365 |
559 |
|
|
m3/h |
620 |
620 |
950 |
|||
|
Sound pressure Noise Level |
dB(A) |
42.5 |
42.5 |
46 |
||
|
Dimension |
Net(W*H*D) |
mm |
840*205*295 |
840*205*295 |
1045*376*326 |
|
|
packing(w*H*D) |
mm |
920*290*360 |
920*290*360 |
952*310*231 |
||
|
Weight |
Net |
kg |
9.5 |
9.5 |
12.0 |
|
|
Gross |
kg |
11.8 |
11.8 |
15.0 |
||
|
Pipe Diameter |
Liquid side |
mm(inch) |
6 . 35(1/4) |
6 . 35(1/4) |
6 . 35(1/4) |
|
|
Gas side |
mm(inch) |
9 . 52(3/8) |
9 . 52(3/8) |
12 . 7(1/2) |
||
|
Drainage |
mm |
16.9 |
16.9 |
16.9 |
||

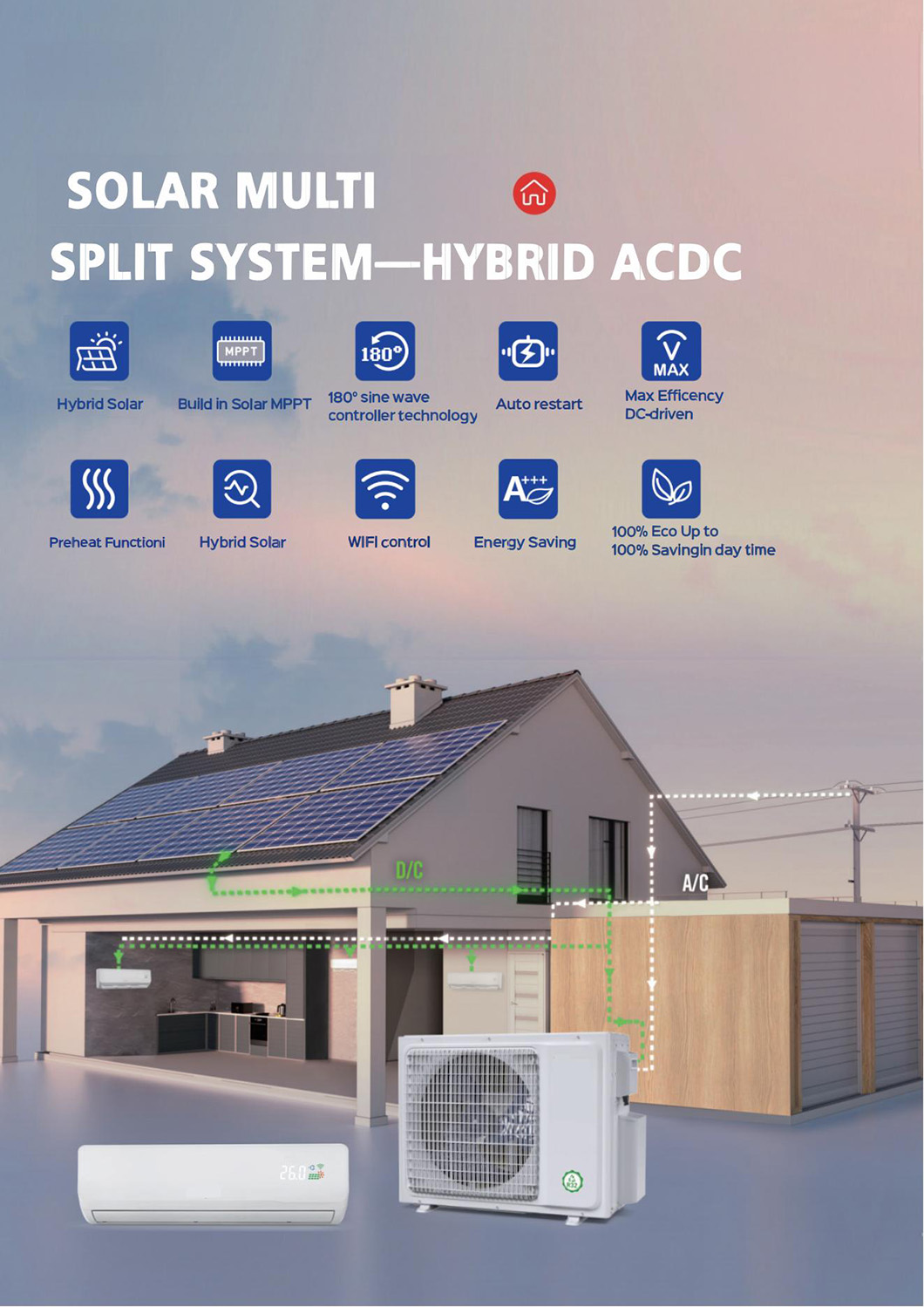

The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
What is off grid system? Off-grid solar energy systems are also called stand-alone solar systems. It does not connect with Grid or called Utility. It is very popular and suitable for remote areas where there is no public power or Public power is instable.It can be for Home applications, Commercial applications and Industrial applications. The off-grid solar energy system can be 1kW/2kW/3kW/5kW/10kW/12kW/16kW/20kW/24kW/30kW/50kW/80kW/100kW/120kW/ 150kW/200kW/Customized off-gid power system Off-grid system is suitable for areas without grid-connected or unstable grid-connected power. Off grid system is usually composed of solar panels, connector, inverter, batteries and mounting system. Description of 15kW solar panel system: Inverter power: 25kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The MPPT solar charge controller uses multiphase synchronous rectification technology and common negative pole design, it chooses high speed processor and advanced MPPT algorithm to make it has high response speed, high reliability and other standards. The advanced MPPT algorithm that the solar controller adopts can trace the maximum power point of PV arrays quickly in any situation to obtain the max. power from PV arrays. And the multiphase synchronous rectification technology can achieve high conversion efficiency in any charging environment and improve the utilization rate of solar power system greatly. According to the rated voltage of battery bank system, our factory can provide the MPPT solar charge controller from 192V to 540V which suitable to almost off grid solar power system
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
