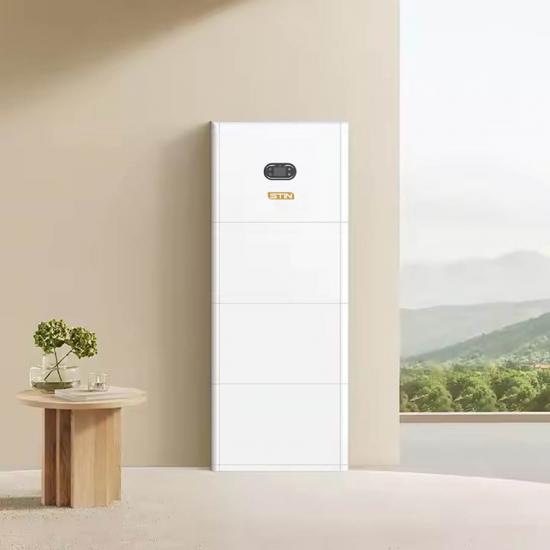

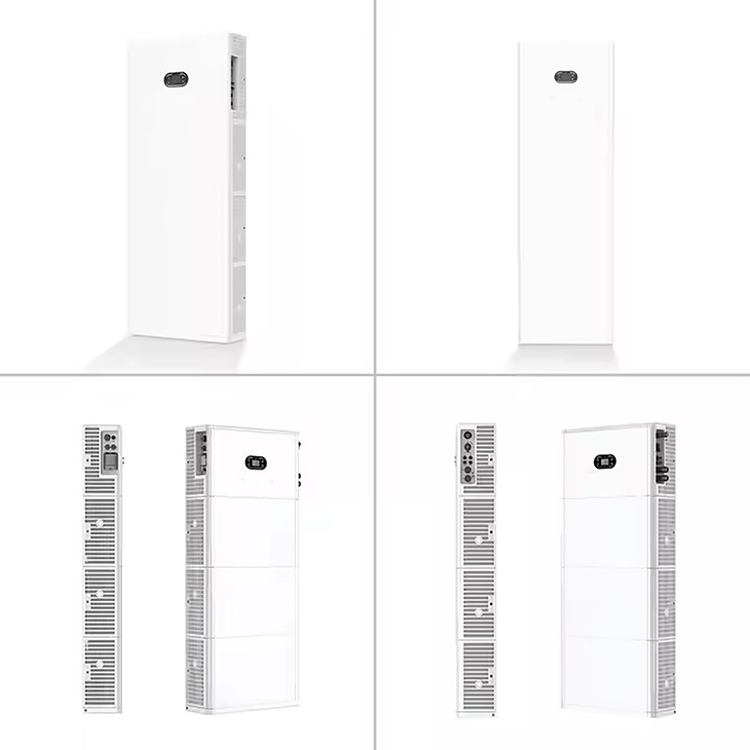

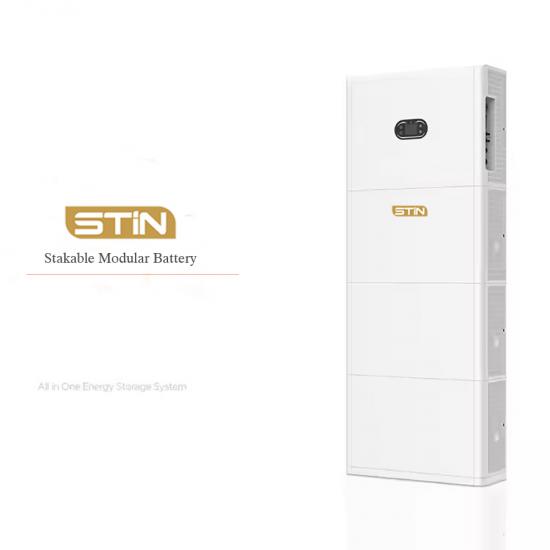

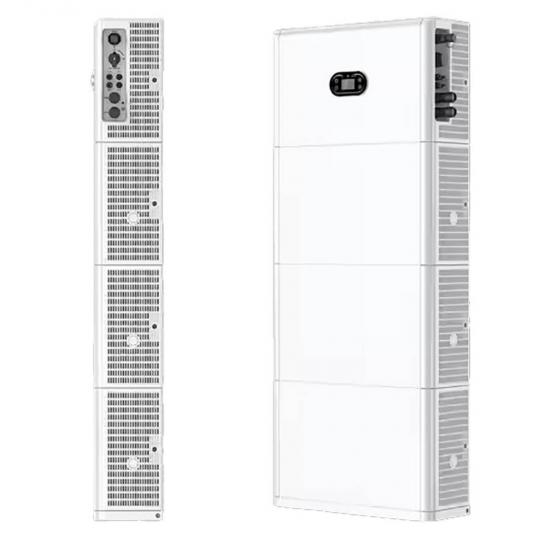

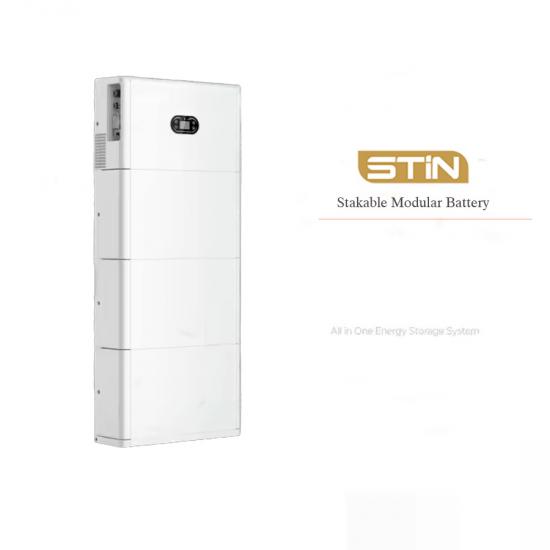

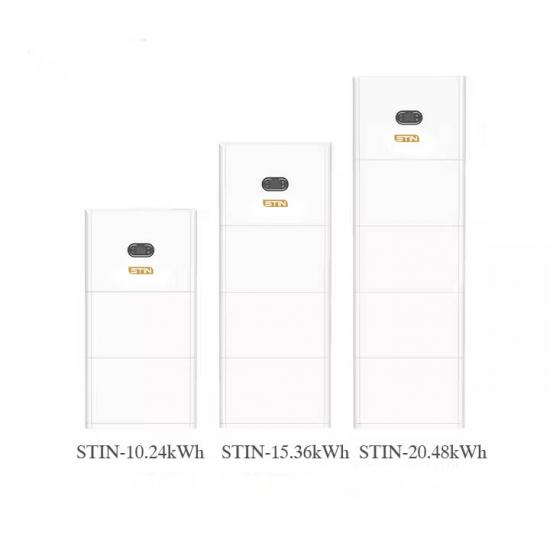

10.24kWh 51.2V 100ah All in One Inverter and Lithium Battery Cabinet

The Lifepo4 battery power bank is Lithium iron phosphate battery module which designed for backup power application. This battery module integrated with intelligent BMS inside, has big advantages on safety, cycle life, energy density, temperature range and environmental protection. Model:   51.2V 100AH or 48V100AH Rated Voltage (V):   51.2V/48V Rated Capacity (Ah):   100Ah Supply Ability:   5000 per Month MOQ:  1pc Certificate:   CE, IEC62619, UN38.3, MSDS,ISO9001

E-BOX-48100R, the new generation LFP battery for home energy storage system. It provides safe,well-designed and high-performance standard LFP battery pack for you. The battery pack is compact, easy to install, free of maintenance and used as the building block of energy storage system by assembling in parallel. It is widely applied in home applications, small commercial and industrial energy storage system as well as Telecom stations.

Features: The battery module consists of single LFP cells, wire, BMS and container. ●Packed with high performance LFP single cell, long life, safety and wide temperature range ●High energy density, small size, light weight, no pollution ●Packing with single cell container, fire retardant wire and laser welding, stable and safe ●Built-in BMS, with battery voltage, current, temperature and health management ●LED indicate the battery SOC and operating status ● LCD Screen display the battery voltage, current, temp.,SOC detail information ●Support communicate with solar inverter bu CAN or RS485 ●Update software by RS485 port ●Flexible customization of dimensions ●More than 15 years design life ●Stable performance, maintenance-free Dimension Specification Item Specification Conditions Nominal Voltage 51.2V  25℃,0.2C Capacity 200Ah Module weight 80.0kg ±1kg Dimensions(W*D*H), mm 442*600*230 ±2mm Operating parameters Charging Voltage 56.0+/-0.8V   End-off Voltage 44.8V   Charging current Max constant charge: 100A Recommended 30A Discharging current Max constant discharge: 100A   Temperature Charge range 0℃~50℃   Discharge range -20℃~55℃   Storage range -20℃~55℃   BMS Built-in BMS Voltage, current, temperature management & cell balance RS485,CAN communication Service life Design life >15years 25℃ Cycle life >6000 times, 0.5C, 80%DOD   Performance curve

1. Intelligent management system and multiple working modes, meeting different customer needs 2. Allowing you to set the priority of grid connection, battery type and other inverter information on the LCD screen. 3. Dual MPPT, high current input, compatible with large solar cell module of 210mm, flexible configuration, 4. All-in-one design, providing backup power and peak-shaving function. 5. With a battery safety management system, supporting the remote upgrade of BMS system.

What is off grid system? Off-grid solar energy systems are also called stand-alone solar systems. It does not connect with Grid or called Utility. It is very popular and suitable for remote areas where there is no public power or Public power is instable.It can be for Home applications, Commercial applications and Industrial applications. The off-grid solar energy system can be 1kW/2kW/3kW/5kW/10kW/12kW/16kW/20kW/24kW/30kW/50kW/80kW/100kW/120kW/ 150kW/200kW/Customized off-gid power system Off-grid system is suitable for areas without grid-connected or unstable grid-connected power. Off grid system is usually composed of solar panels, connector, inverter, batteries and mounting system. Description of 15kW solar panel system: Inverter power: 15kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS

This kind of solar system is integrated with wind turbine. Solar panel and wind turbine supply power to loads and charge battery together. It is suitable for those area with high-quality wind resources.

Characters Transformerless with three level topology Max efficiency up to 98.4% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication Component brands Specifications DC side/Input parameters Max. DC power [W] 13200 16500 Max. DC voltage [Vdc] 1000 1000 Min. System start voltage [Vdc] 250 250 MPPT voltage range[Vdc] 250~850 250~850 Max. input current [A] 20/20 20/20 Number of MPP trackers 2 3 Strings per MPP tracker 2 2 AC side/output parameters Nominal output power [W] 12000 15000 Maximum output power [W] 13200 16500 Nominal output voltage/range [V] 50/60 Hz ; 400 Vac AC grid frequency/range [Hz] 45/55 Hz ; 280~490 Vac (Adj) Power factor [%] 0.8leading ... 0.8laging Harmonics <1.5% Maximum output current [A] 20 23 AC connection(with PE) Current distortion(THDi) [%] <1.5 <1.5 Power factor [%] >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98.4 98.5 European efficiency[%] 97.9 98 MPPT efficiency[%] 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 510*484*217.5cm Weight (kg) 35 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;EN50439; VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects

The 20kW off grid solar system is suitable for area without grid or grid is unstable. It can be compatible with generator to saving electricity bill and increase the power quality. Inverter power: 4pcs 5kw in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
