The 100kw off grid solar system is suitable for area where there is no public electricity or public electricity is not stable. It will be a good solution to supply power to the loads and decrease the electricity bill and fuel bill.
Inverter power: 100kw power frequency inverter
AC output voltage: split phase 120V/240V or three phase 208V or 380V
Battery voltage: DC360V
Battery type: Gel battery or LiFePO4 battery
Solar panel type: Mono or poly
Compatible with generator and grid
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
20daysOrder(MOQ):
1100kW solar off grid system configuration for your reference
No | Item | Specification | Quantity | Remark | |
1 | mono | 400W | 180 | grade A cells,15pcs in one string and 12strings in paralle1 | |
2 | Solar panel bracket | C-shaped steel | 1 | Ground type | |
3 | PV combiner box | 6 inputs, 1 output | 2 | waterproof, lightning protection, with DC breaker and fuse | |
4 | MPPT charging controller | 360V/100A | 2 | ||
5 | Off grid inverter three phase | Pure sine wave, 100KW/360V | 1 | power frequency inverter;output:380VAC/50HZ ;(each phase can run 100% unbalanced loads with 220V50HZ output, the maximum load capacity for each phase is 33.3KW) | |
6 | Gel battery (deep cycle) | 2V1000AH | 180 | 180pcs 2v1000ah in one string, including cables and battery rack | |
7 | accessories | Battery distribution box(with MCCB breaker) | 1 | It is for DC part | |
MC4 connector | 10 | ||||
PV cables(solar panel to PV combiner box) | 4mm2 | 300 | |||
BVR cables(PV combiner box to MPPT controller) | 16mm2 | 100 | |||
BVR cables(battery to distribution box) | 50mm2*2 | 20 | |||
BVR cables(inverter to distribution box) | 50mm2*2 | 20 | |||
BVR cables (MPPT controller to distribution box) | 35mm2 | 40 |
Main components introduction
![]() |

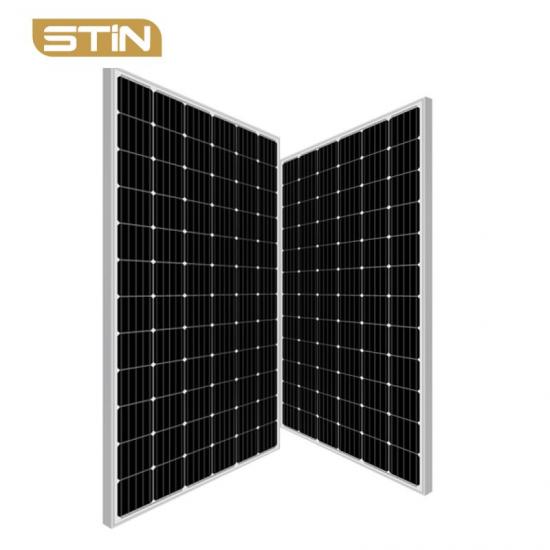

mono or poly solar panels, grade A cells, with excellent low irradiance performance and excellet PID resistance |
![]() |
mounting structure for solar panels, gavalnized steel or aluminum alloy, roof type or ground type. It can be designed based on your needs |
![]() |
PV combiner box, 6 inputs, 1 output, with DC breaker, SPD and fuse. 1000V, IP65 protectiong grade |
![]() |

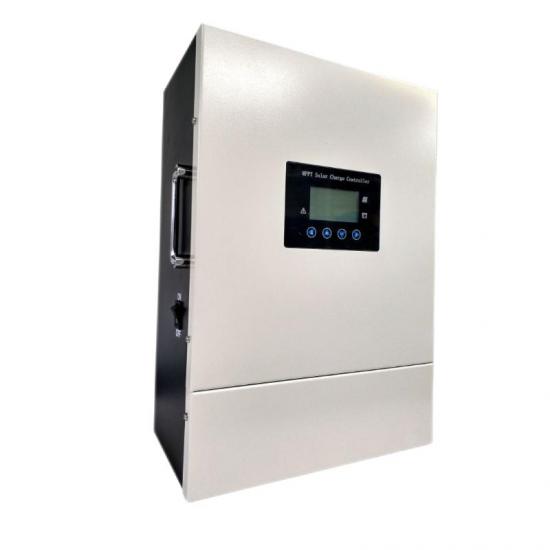

360V100A mppt solar charge controller, 1PV port, maximum pv input power 42.6kW. Wide PV input range: 380V-750V. MPPT tracking efficiency can reach up to 99.9%. IGBT module design, suitable for both gel battery and lithium-ion battery. |
![]() |

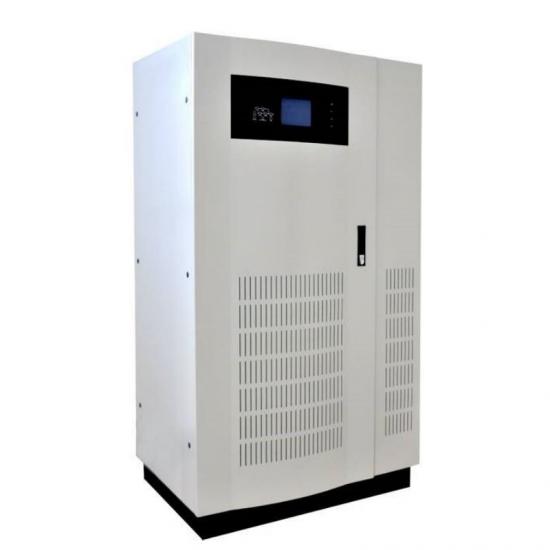

100kW power frequency inverter with transformer inside, stable output, 92% high efficiency, suitable for all kinds of inductive loads. Output voltage can be three phase 380V or three phase 208V. |
![]() |

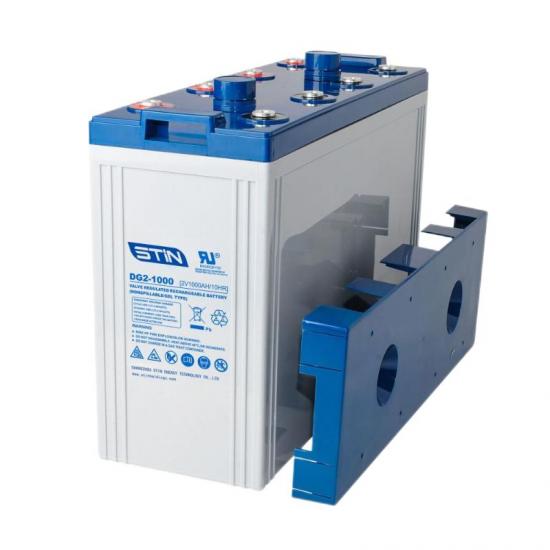

2V1000AH gel battery, ABS outshell, low internal resistance, long cycle lifespan, low self discharge rate, wide operation temperature range |
How to choose one suitable solar off grid system?
1, confirm the inverter voltage and inverter power based on your loads
2, confirm if the system is totally off grid or with grid/generator as backup
3, confirm solar panel power based on your daily load conumption and solar irradiance figure
4, confirm battery type and battery backup hours
FAQ
1: What's your main products?
solar lithium-ion battery, on grid, off grid and hybrid solar system, solar inverter, high voltage mppt solar charge controller, solar air conditioner
2:What is your advantage in solar products?
We have been in solar industry for more than 10years and accumulated rich experience. With branch in Japan, Korea, Singapore and Cambodia, full support can be supplied from design to installation.
3: Can you send free samples?
It depends on which kind of products. Normally the sample fee will be returned after you place massive order.
4: What's the shipping cost?
After you confirm the quantity, please let us know which kind of transportation(by sea, by air, by DHL or Fedex or TNT or UPS) you prefer and the destination port. We will send you the shipping cost and time.
5: What's your minimum order quantity?
1pc.
6: How can we send the payment?
T/T, L/C, Paypal, Western Union.
