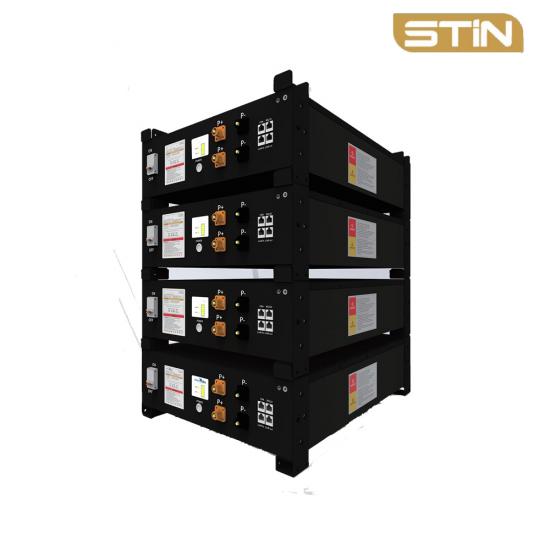

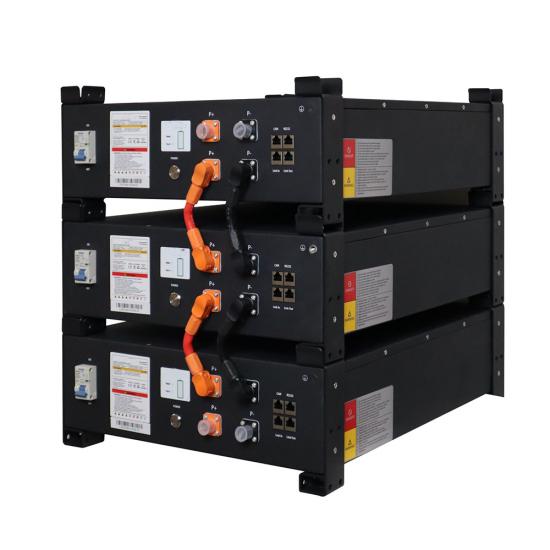

Multiple LWBAT-R512Aacan be connected parallel to expand capacity and power 15 LV-BAT-R5.12Aa can be connected in parallel at most
Specification
Model

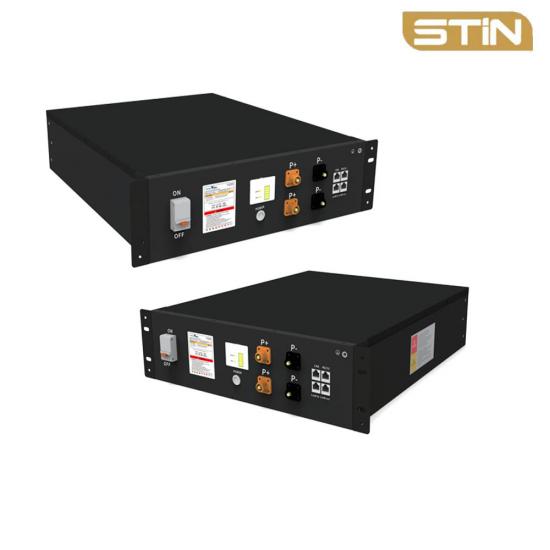

LV-BAT-R5.12Aa
Nominal Voltage
51.2V
Rated Capacity
100Ah
Energy
5120Wh
Charging Cut-off Voltage
56.16 V
Discharge Cut-off Voltage
45.6 V
Recommend charge/discharge current
50A
Maximum continuous charge/discharge current
100A
Instantaneous discharge current
200A/1S
Charge temperature
0~55°C
Discharge temperature
-20~60ºC
Storage Environment
20°C ~ 45°C in three months;
Environment
Indoor
Installation
Wall-mounted/Rack Mount
Cell Technology
Lithium iron phosphate (LiFePO4)
Life Cycle
6000 times @80%DOD
Cooling
Natural cooling
Protection Rating
IP20
Certificates
CB, IEC62619, UKCA, CE-EMC,
Dimension

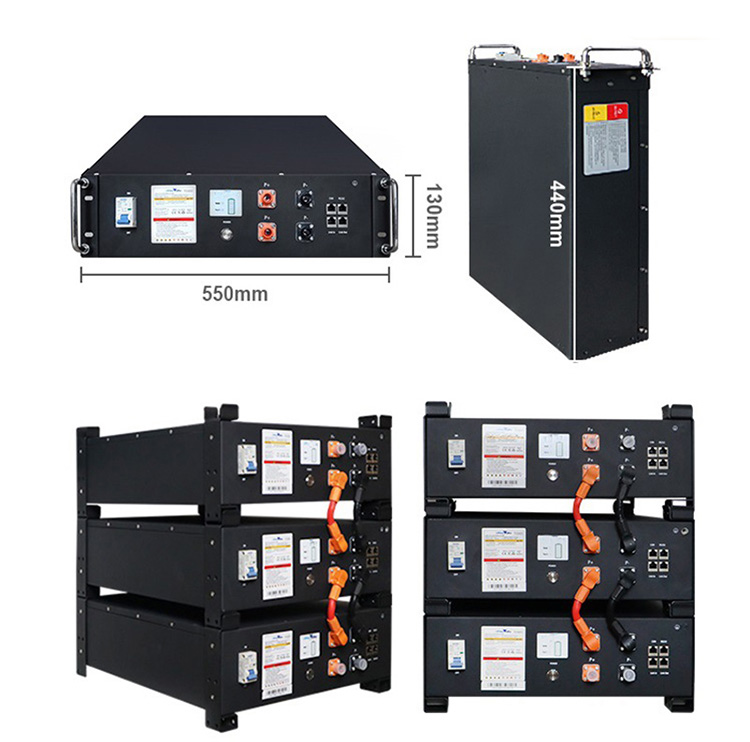

550*440*130mm(3U)
Weight
44.35KG/47.85KG
Communication
RS232, CAN, RS485
(50% state of charge)
25±3°C over three months; Humidity:65±20%RH
CE-GPSD,EN62619; UN38.3, MSDS, UL1973, UL9540A
LV-BAT-R5.12Aa is a lithium battery with an operating voltage range between 45.6~56.2V. It is designed for residential energy storage applications and works together with a low voltage hybrid inverter.LV-BAT-R5.12Aa is not suitable for supporting life-sustaining medical devices. LLV-BAT-R5.12Aa ihas built-in BMS (Battery Management System), which can manage and monitor cells information including voltage, current and temperature. Besides that,BMS can balance cells charging to extend cycle life.BMS has protection functions including over-discharge,over-charge, over-current and high/low temperature;the system can automatically manage charge state, discharge state, and balance state. Multiple LWBAT-R512Aacan be connected parallel to expand capacity and power 15 LV-BAT-R5.12Aa can be connected in parallel at most
