This kind of solar system is integrated with wind turbine. Solar panel and wind turbine supply power to loads and charge battery together. It is suitable for those area with high-quality wind resources.
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
ShanghaiLead Time:
20daysOrder(MOQ):
1Working principle

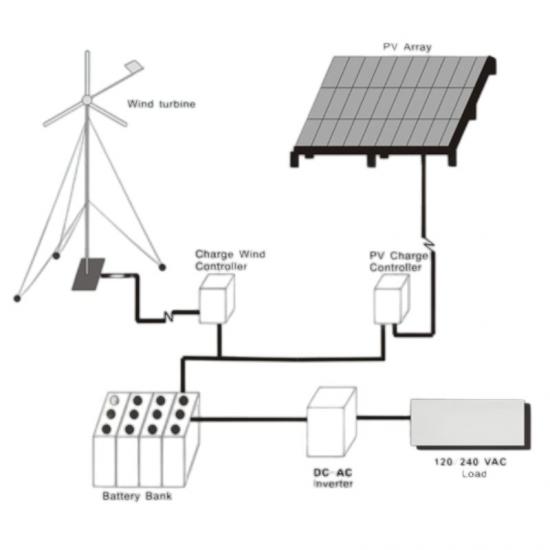

The wind-solar hybrid power generation system is mainly composed of wind turbines, solar panel arrays, intelligent controllers, battery packs, multi-functional inverters, cables, supports and auxiliary parts. Wind power is used for power generation at night and when there is no sunlight in rainy days, and solar power is used for power generation in sunny days. In the case of both wind and sun, both play a role at the same time, realizing the function of all-weather power generation, which is more economical, scientific, practical.
Advantages
Fully utilize wind energy and solar energy for complementary power generation without external power supply;
Exemption from construction of substations, erection of high and low voltage lines and high and low voltage distribution systems;
It has the characteristics of day and night complementation and seasonal complementarity, the system is stable and reliable, and the cost performance is high;
The maintenance workload of power facilities and the corresponding expenses have been greatly reduced;
Independent power supply, will not affect the electricity consumption of all users in the event of natural disasters;
Low voltage power supply, safe operation and simple maintenance.

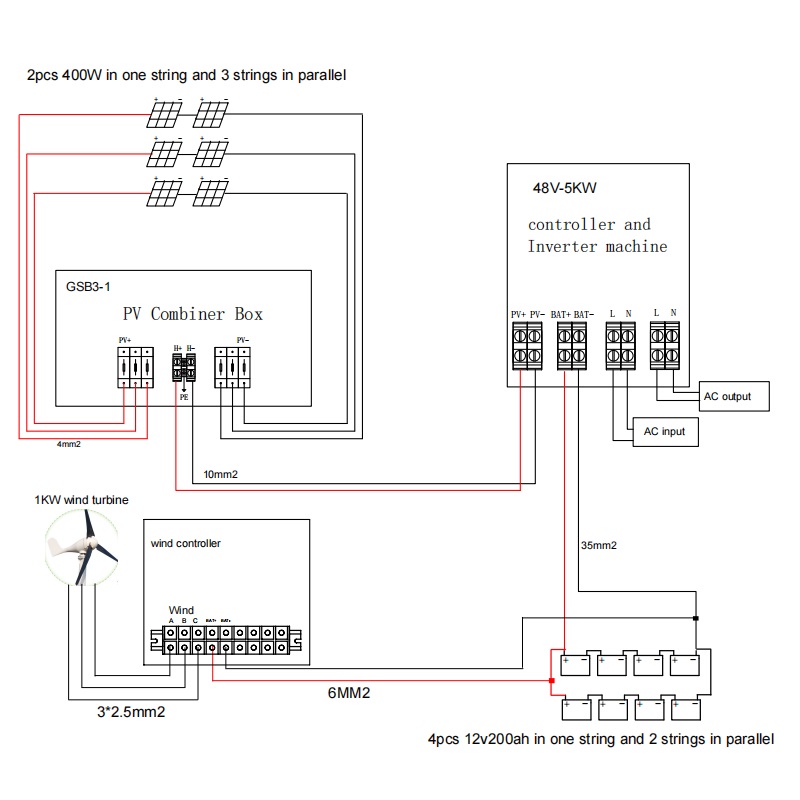

5kW solar and wind hybrid system configuration
| No | Name | Picture | Specification | Quantity | Remark | |

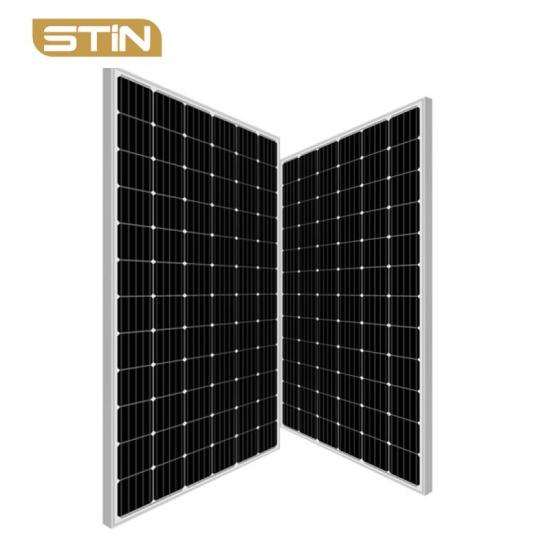

| 1 | mono |
 |
400W | 6 | grade A cells,2pcs in one string and 3 strings in paralle1 | |
| 2 | PV structure |
 |
C-shaped steel | 1 | Ground type or roof type | |

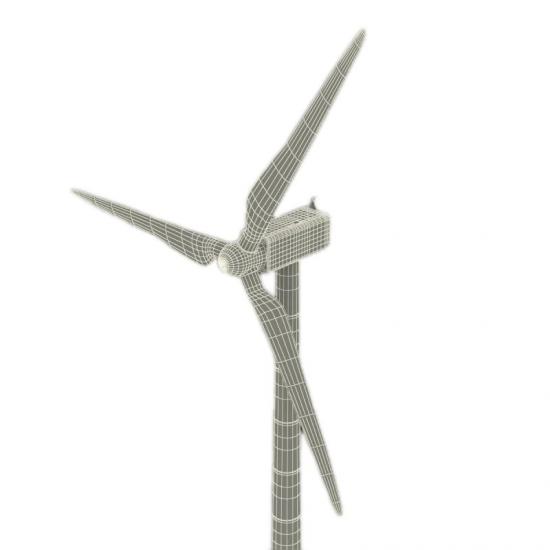

| 3 | wind turbine |
 |
1000w/48v, horizontal axis | 1 | ||
| 4 | wind turbine controller |
 |
1000w/48v | 1 | ||
| 5 | 6m guyed tower |
 |
3m*2，diameter 89mm，thickness 3.5mm | 1 | ||
| 6 | PV combiner box |
 |
GSB3-1 | 1 | waterproof, lightning protection, with DC breaker and fuse | |

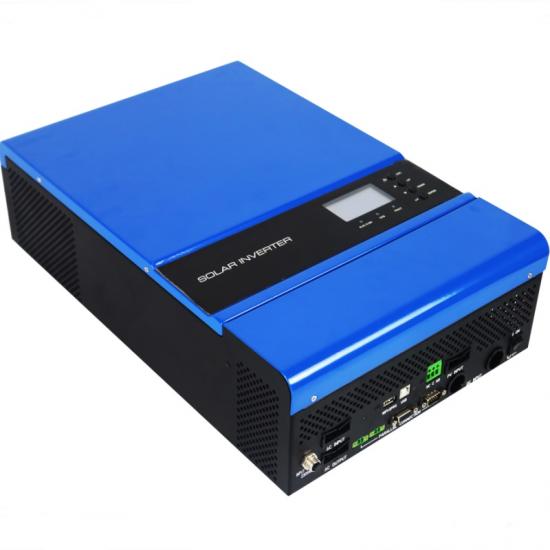

| 7 | solar inverter with built-in MPPT controller |
 |
Pure sine wave, 5kw with mppt controller | 1 | high frequency inverter；output:220VAC/50HZ, 48V80A mppt charge controller | |
| 8 | datalogger for inverter |
 |
wifi | 1 | ||

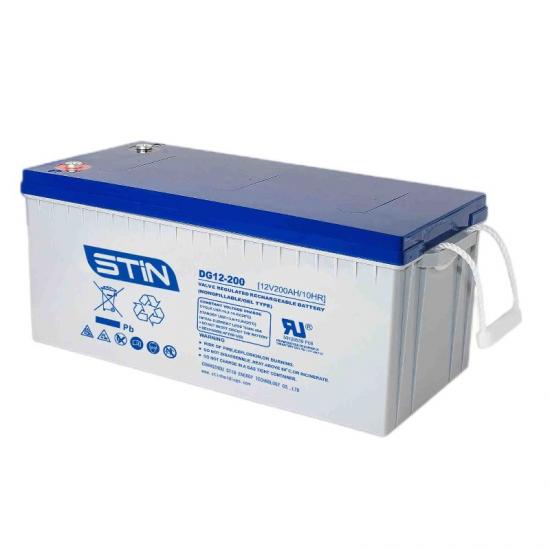

| 9 | Gel battery |
 |
12V200AH | 8 | ||
| 10 | battery rack |
 |
support 8pcs 12v200ah batteries | 1 | ||
| 11 | accessories | MC4 connector | 5 | |||
| PV cables(solar panel to PV combiner box) | 4mm2 | 100 | ||||
| BVR cables(PV combiner box to inverter) | 10mm2 | 30 | ||||
| BVR cables(battery to inverter) | 35mm2 | 10 | ||||
| BVR cables(wind controller to battery) | 6mm2 | 10 | ||||
| BVR cables(wind turbine to controller) | 3*2.5mm2 | 50 | ||||
The 3kw off grid solar system is usually for home use where there is no grid or grid is unstable. It can supply power to normal home loads such as washing machine, LED lights, fan, air conditioner. Inverter power: 3kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 5kw off grid solar power system is suitable for a place where is no grid network or grid power is not stable. It can be described solar storage system with utility backup power, or grid-tied solar system with extra battery storage(no feed into grid). Inverter power: 5kW AC output voltage: AC110V/120V or AC220V/230V/240V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 10kW solar off grid power plant is composed of solar panels, batteries, inverters and other accessories. This system can supply power to home loads independently, also it can be connected to grid or generator to take them as backup when battery is over discharged. Inverter power: 2pcs 5kw in parallel AC output voltage: AC110V/120V or AC220V/230V/240V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 15kw off grid solar system can be suitable for both residential use and commercial use. The output voltage can be single phase or three phase. Inverter power: 3pcs 5kW inverter in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 20kW off grid solar system is suitable for area without grid or grid is unstable. It can be compatible with generator to saving electricity bill and increase the power quality. Inverter power: 4pcs 5kw in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 30kW off grid solar power system can be used for remote area without grid connection. Wifi or GPRS monitor can be avaible for such system. Inverter power: 6pcs 5kw in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatiable with generator Monitor: WIFI or GPRS
The 40kw off grid solar sysem is normally used for area without grid connection or grid is unstable such as farm, hotel, small factory. Inverter power: 40kW power frequency inverter Inverter type: power frequency AC output voltage: AC380V Battery voltage: DC240V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatiable with generator
The 50kw off grid solar system is designed for farm or hotel use. It can compatible with grid or generator. Solar is priority, gid and generator will be on standby mode. Inverter power: 50kW power frequency inverter AC output voltage: Three phase 208V or 380V Battery voltage: DC220V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly
