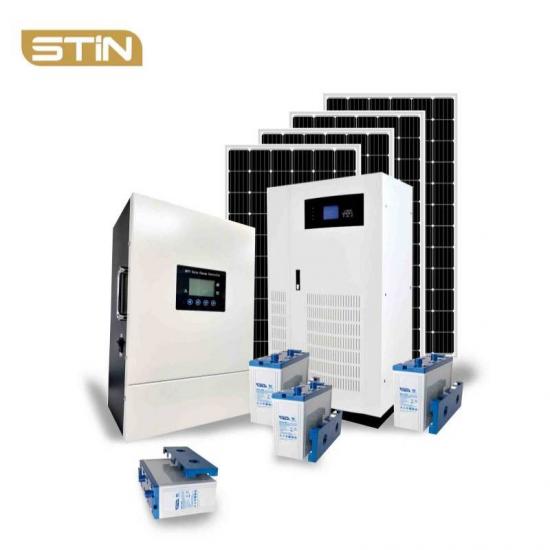

The 60kw off grid solar system is suitable for area without grid or grid is not stable. It can be compatible with generator or grid.
Inverter power: 60kw power frequency inverter
AC output voltage: AC120V/240V split phase or three phase 208V/380V
Battery voltage: DC360V
Battery type: Gel battery or LiFePO4 battery
Solar panel type: Mono or poly
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenOrder(MOQ):
160kw solar off grid system configuration for your reference
| No | Item | Specification | Quantity | Remark | |
| 1 | mono | 400W | 112 | grade A cells,14pcs in one string and 8strings in paralle1 | |
| 2 | Solar panel bracket | C-shaped steel | 1 | Ground type | |
| 3 | PV combiner box | 4 inputs, 1 output | 2 | waterproof, lightning protection, with DC breaker and fuse | |
| 4 | MPPT charging controller | 360V/60A | 2 | ||
| 5 | Off grid inverter three phase | Pure sine wave, 60KW/360V | 1 | power frequency inverter；output:380VAC/50HZ ；(each phase can run 100% unbalanced loads with 220V50HZ output, the maximum load capacity for each phase is 20KW) | |
| 6 | Gel battery (deep cycle) | 2V600AH | 180 | 180pcs 2v600ah in one string, including cables and battery rack | |
| 7 | accessories | Battery distribution box(with MCCB breaker) | 1 | It is for DC part | |
| MC4 connector | 10 | ||||
| PV cables(solar panel to PV combiner box) | 4mm2 | 300 | |||
| BVR cables(PV combiner box to MPPT controller) | 10mm2 | 100 | |||
| BVR cables(battery to distribution box) | 25mm2*2 | 20 | |||
| BVR cables(inverter to distribution box) | 70mm2 | 20 | |||
| BVR cables (MPPT controller to distribution box) | 16mm2 | 40 | |||
Main components introduction
 |

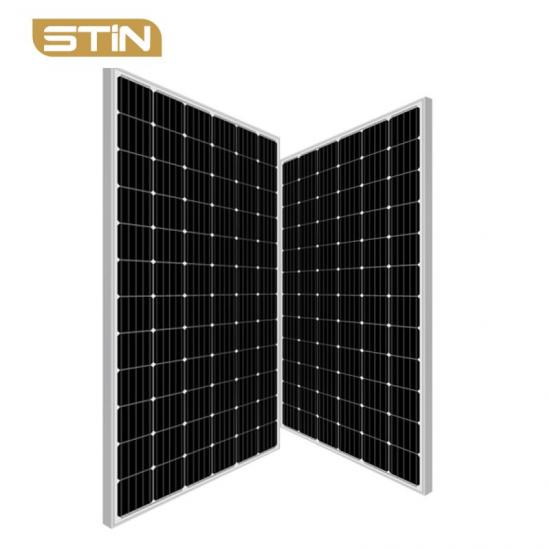

mono or poly solar panels, grade A cells, with excellent low irradiance performance and excellet PID resistance |
 |
mounting structure for solar panels, gavalnized steel or aluminum alloy, roof type or ground type. It can be designed based on your needs |
 |
PV combiner box, 4 inputs, 1 output, with DC breaker, SPD and fuse. 1000V, IP65 protectiong grade |
 |

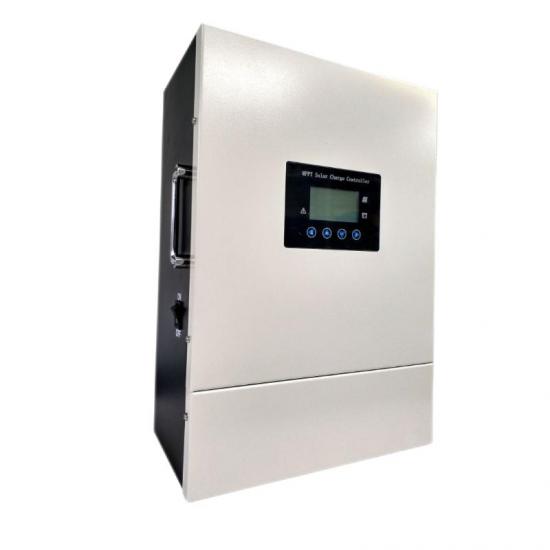

360V60A mppt solar charge controller, 1PV port, maximum pv input power 25.6kW. Wide PV input range: 380V-750V. MPPT tracking efficiency can reach up to 99.9%. IGBT module design, suitable for both gel battery and lithium-ion battery. |
 |

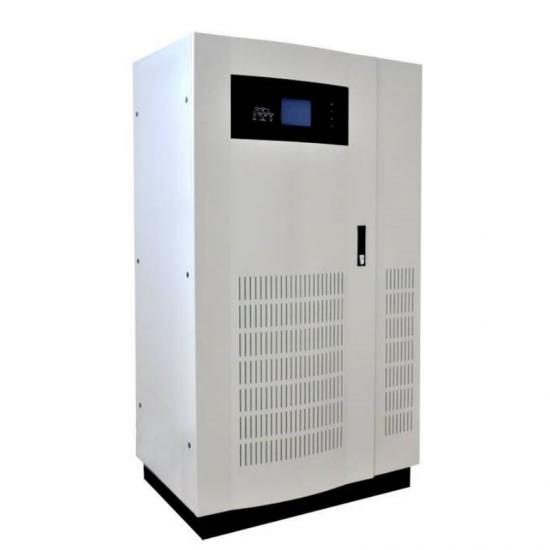

60kW power frequency inverter with transformer inside, stable output, 92% high efficiency, suitable for all kinds of inductive loads. Output voltage can be three phase 380V or three phase 208V. |
 |

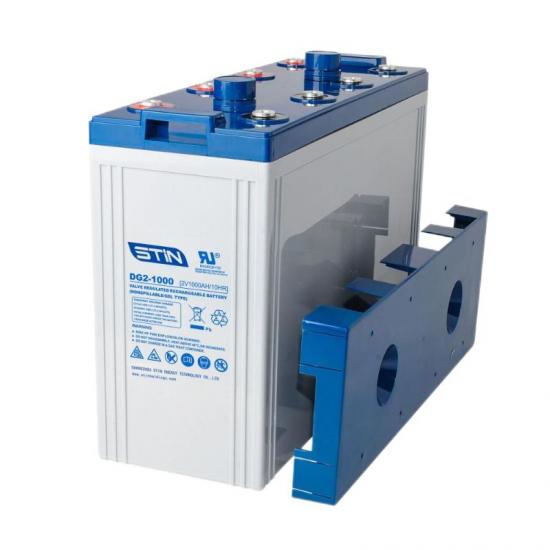

2V600AH gel battery, ABS outshell, low internal resistance, long cycle lifespan, low self discharge rate, wide operation temperature range |
How to choose one suitable solar off grid system?
1, confirm the inverter voltage and inverter power based on your loads
2, confirm if the system is totally off grid or with grid/generator as backup
3, confirm solar panel power based on your daily load conumption and solar irradiance figure
4, confirm battery type and battery backup hours
The 3kw off grid solar system is usually for home use where there is no grid or grid is unstable. It can supply power to normal home loads such as washing machine, LED lights, fan, air conditioner. Inverter power: 3kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 5kw off grid solar power system is suitable for a place where is no grid network or grid power is not stable. It can be described solar storage system with utility backup power, or grid-tied solar system with extra battery storage(no feed into grid). Inverter power: 5kW AC output voltage: AC110V/120V or AC220V/230V/240V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 10kW solar off grid power plant is composed of solar panels, batteries, inverters and other accessories. This system can supply power to home loads independently, also it can be connected to grid or generator to take them as backup when battery is over discharged. Inverter power: 2pcs 5kw in parallel AC output voltage: AC110V/120V or AC220V/230V/240V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 15kw off grid solar system can be suitable for both residential use and commercial use. The output voltage can be single phase or three phase. Inverter power: 3pcs 5kW inverter in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 20kW off grid solar system is suitable for area without grid or grid is unstable. It can be compatible with generator to saving electricity bill and increase the power quality. Inverter power: 4pcs 5kw in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 30kW off grid solar power system can be used for remote area without grid connection. Wifi or GPRS monitor can be avaible for such system. Inverter power: 6pcs 5kw in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatiable with generator Monitor: WIFI or GPRS
The 40kw off grid solar sysem is normally used for area without grid connection or grid is unstable such as farm, hotel, small factory. Inverter power: 40kW power frequency inverter Inverter type: power frequency AC output voltage: AC380V Battery voltage: DC240V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatiable with generator
The 50kw off grid solar system is designed for farm or hotel use. It can compatible with grid or generator. Solar is priority, gid and generator will be on standby mode. Inverter power: 50kW power frequency inverter AC output voltage: Three phase 208V or 380V Battery voltage: DC220V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly
