ESS Parameters
|
No. |
Item |
Parameter |
Remark |
|
|
1 |
Battery type |
LiFePO4 |
|
|
|
2 |
Battery energy |
100KWh |
Battery with BMS |
|
|
3 |
PCS & MPPT power |
50KW |
|
|
|
4 |
Communication |
Wi Fi/RS485 |
|
|
|
5 |
Work mode |
Self Use |
Self use, peak s having and |
|
|
6 |

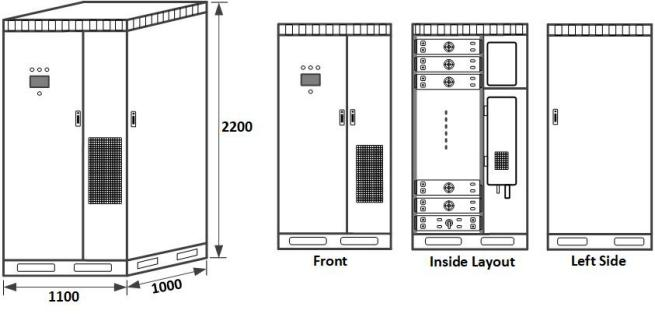

Size |
1100*1000*2200mm |
|
|
|
7 |
Weight |
1350kg(about) |
|
|
|
8 |
Work temperature |
-15~55℃ |
|
|
|
9 |
Humidity |
5%~95% |
|
|
|
10 |
Altitude |
< 3000m |
|
|
|
Battery Parameters |
||||
|
No. |
Item |
Parameter |
Remark |
|
|
1 |
Type |
LiFePO4 Battery |
|
|
|
2 |
Nominal voltage |
512V |
10 slavers + 1 master |
|
|
3 |
Rated capacity |
200Ah |
Min. 198Ah |
|
|
4 |
Rated energy |
100KWh |
|
|
|
5 |
End of charge voltage |
575V |
|
|
|
6 |
End of discharge voltage |
445V |
|
|
|
7 |
Standard charge current |
50A |
|
|
|
8 |
Max charge current |
100A |
|
|
|
9 |
Max discharge current |
150A |
|
|
|
10 |
Peak discharge current |
200A |
|
|
|
11 |
Protection |
Over voltage protection, Under |
With BMS |
|
|
12 |
Communication |
CAN |
|
|
|
13 |
Work temperature |
Charge: 0℃ ~50℃ |
|
|
|
14 |
Slaver module parameters |
|||
|
15 |
Nominal voltage |
51.2V |
|
|
|
16 |
Rated capacity |
200Ah |
|
|
|
17 |
Rated energy |
10KWh |
|
|
|
18 |
End of charge voltage |
57.5V |
|
|
|
19 |
End of discharge voltage |
44.5V |
|
|
|
20 |
Communication |
CAN |
|
|
|
21 |
Size |
442*750*135mm / 3U |
|
|
|
22 |
Weight |
88kg (about) |
|
|
|
23 |
Master module parameters |
|||
|
24 |
Function |
High Voltage Box |
|
|
|
25 |
Communication |
CAN |
|
|
|
26 |
Size |
442*500*140mm / 3U |
|
|
|
27 |
Weight |
30kg (about) |
|
|
|
PCS & MPPT Parameters |
||||
|
No. |
Item |
Parameter |
Remark |
|
|
1 |
AC Rated power |
50KW |
Off-grid and On-grid |
|
|
2 |
AC Rated voltage |
400Vac/230Vac |
L1/L2/L3/N/PE |
|
|
3 |
AC Rated current |
72A |
|
|
|
4 |
AC Rated frequency |
50/60Hz |
|
|
|
5 |
PV Max. Power |
60KW |
|
|
|
6 |
PV Max. voltage |
1000V |
|
|
|
7 |
MPPT voltage range |
450V~850Vdc |
|
|
|
8 |
PV Max. current |
35A |
|
|
|
9 |
MPPT channels |
6 |
|
|
|
10 |
Work temperature |
-15~50℃ |
|
|

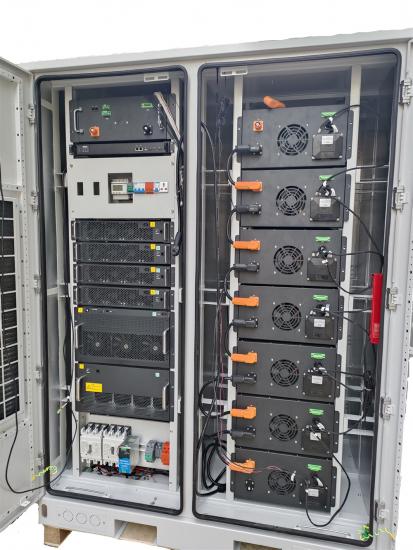

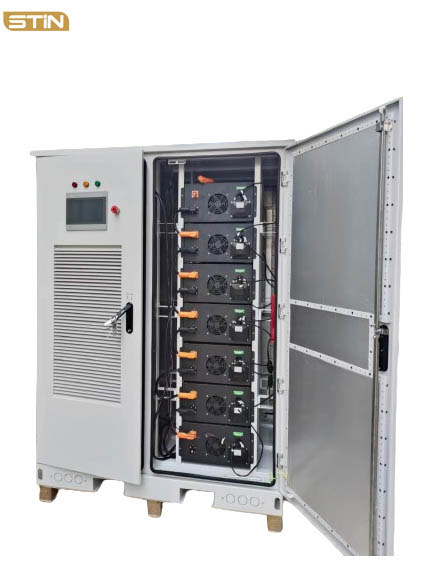

This high voltage lifepo4 battery system is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system.It can be used as independent DC power supply or as "basic unit" to form a variety of energy storage lithium battery power supply systems. It has high reliability and long life. Products developed for applications such as power grid energy storage, industrial and commercial energy storage, home high voltage energy storage, high voltage UPS, and data room.
GBP series lithium iron phosphate batteries are a new type of environmentally friendly backup power supply launched for energy storage and power backup applications. The system adopts environmentally friendly lithium iron phosphate batteries and equipped with a customized BMS system for effective management of the battery cells, providing superior product performance and safety and reliability compared to traditional batteries. The product has a high number of charge and discharge cycles, high power density and long service life. Unique design and innovation in compatibility, energy density, dynamic monitoring, safety, reliability and product appearance can bring users a better experience in energy storage applications.
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)

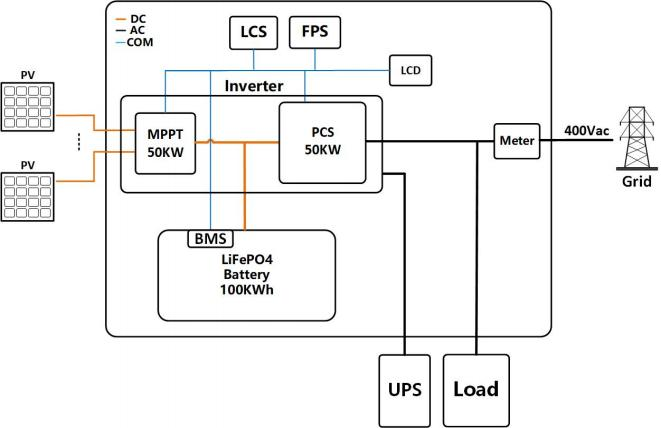

The LiFePO4 battery ESS (Energy Storage System) includes LiFePO4 battery, PCS. The system includes 100KWh LiFePO4 battery, 50KW PCS, liquid cooling system and Fire protection system. The system includes BMS, PCS, and EMS.
Off-grid solar energy systems is mainly composed of photovoltaic modules, controllers, inverters, batteries and other accessories The working principle of the solar panel system is that the photovoltaic module converts light energy into direct current, and the direct current is converted into alternating current under the action of the inverter, and finally realizes the power consumption function. It can be for Home applications, Commercial applications and Industrial applications. Inverter power: 5kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
