Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
15days
1. Upgradeable design: You can start with a single inverter and battery unit and expand your system as your needs grow. Each inverter has a power rating of 6 kW and can be paralleled with up to 3 units for a total of 18 kW. Each battery has a capacity of 5.5 kWh and can be stacked and paralleled with up to 12 units for a total of 66 kWh.
2. Plug and play: Our system does not require any matching or commissioning. Just connect the inverter and battery units with the included cables and you are ready to go. The system will automatically detect and synchronize the units for optimal performance.
3. Smart management: You can monitor and control your system from anywhere with our user-friendly app.

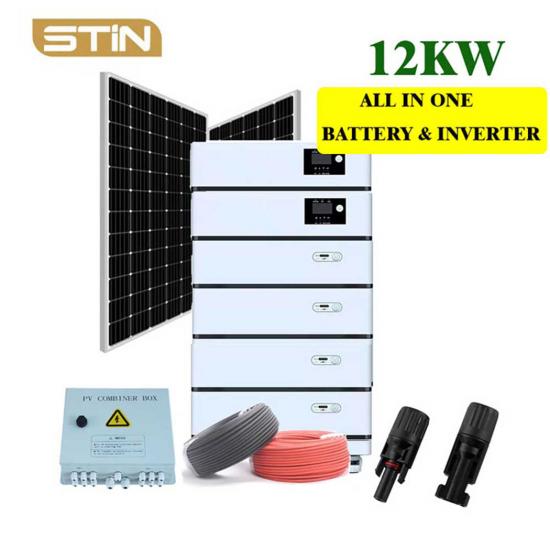

All-in-one solar energy system for home use
solar off-grid system with rack-type inverter and battery
solar system with all in one inverter and battery
Parameter
System configuration
System power
6kW Solar system
12kW Solar system
18kW Solar system
Solar Inverter (KW), rack type
6KW MPPT Solar inverter
12KW(2*6KW) MPPT Solar inverter in parallel
18kw(3*6kw) MPPT Solar inverter in parallel
550W Mono Solar Panel(5pcs in one string)
10units
20units
30units
pv combiner box(i input, 1output)
2unit
4unit
6unit
Lifepo4 battery(51.2V100AH,rack type)
2pcs
4pcs
6pcs
Mounting structure
Customized, alluminum alloy or gavalnized steel
PV cables 4mm2(m)
100m
200m
300m
MC4 connector
4
8
12
Details Description for Reference
The 3kw off grid solar system is usually for home use where there is no grid or grid is unstable. It can supply power to normal home loads such as washing machine, LED lights, fan, air conditioner. Inverter power: 3kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 5kw off grid solar power system is suitable for a place where is no grid network or grid power is not stable. It can be described solar storage system with utility backup power, or grid-tied solar system with extra battery storage(no feed into grid). Inverter power: 5kW AC output voltage: AC110V/120V or AC220V/230V/240V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 10kW solar off grid power plant is composed of solar panels, batteries, inverters and other accessories. This system can supply power to home loads independently, also it can be connected to grid or generator to take them as backup when battery is over discharged. Inverter power: 2pcs 5kw in parallel AC output voltage: AC110V/120V or AC220V/230V/240V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 15kw off grid solar system can be suitable for both residential use and commercial use. The output voltage can be single phase or three phase. Inverter power: 3pcs 5kW inverter in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 20kW off grid solar system is suitable for area without grid or grid is unstable. It can be compatible with generator to saving electricity bill and increase the power quality. Inverter power: 4pcs 5kw in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 30kW off grid solar power system can be used for remote area without grid connection. Wifi or GPRS monitor can be avaible for such system. Inverter power: 6pcs 5kw in parallel AC output voltage: AC220V/230V/240V or AC380V/400V/415V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatiable with generator Monitor: WIFI or GPRS
The 40kw off grid solar sysem is normally used for area without grid connection or grid is unstable such as farm, hotel, small factory. Inverter power: 40kW power frequency inverter Inverter type: power frequency AC output voltage: AC380V Battery voltage: DC240V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatiable with generator
The 50kw off grid solar system is designed for farm or hotel use. It can compatible with grid or generator. Solar is priority, gid and generator will be on standby mode. Inverter power: 50kW power frequency inverter AC output voltage: Three phase 208V or 380V Battery voltage: DC220V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly
