Three Full-Bridge Type Pure Sine Wave Solar Wind Power Inverter with High Quality

The 3kw solar inverter is integrated with MPPT solar charge controller inside. It can also connect to grid to take grid as backup when battery is over discharged. The output voltage is 120V, several pieces in parallel can get 120V/240V split phase. All of parameter such as working mode, charging current, over discharge voltage can be set as you wish.

The 5kw solar inverter is integrated with MPPT solar charge controller inside. It can also connect to grid to take grid as backup when battery is over discharged. The output voltage is 220V, maximum 6pcs in parallel. 3pcs in parallel can get three phase 380v output. All of parameter such as working mode, charging current, over discharge voltage can be set as you wish.

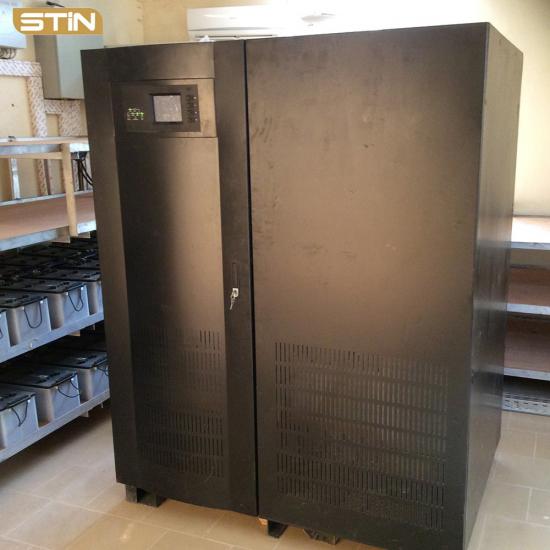

The solar power inverter is highly integrated with the digital technology, which can improve the MTBF and reliability of the system, the whole systems are controlled by an independent high-speed DSP chips which can ensure the stability and reliable operation.  Optional power: 40kW 60kW 80kW 100kW 120kW 150kW 200kW Battery voltage: DC192V/DC216V/DC220V/DC240V/DC360V/DC384V Battery type: Gel battery or Lithium-ion battery AC output voltage: three phase 208V or 380V/400V/415V

The off grid solar inverter can be put outside and work without battery. Both solar panel and grid are connected to the inverter, solar is priority, grid will be backup. It is very suitable for such situation: loads work at daytime, with grid connection. Electricity bill can be saved a lot. The inverter power range can be 5kw to 500kw.

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a low frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries. The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. The wifi/GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device,, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.

The solar power inverter is highly integrated with the digital technology, which can improve the MTBF and reliability of the system, the whole systems are controlled by an independent high-speed DSP chips which can ensure the stability and reliable operation.  Optional power: 40kW 60kW 80kW 100kW 120kW 150kW 200kW Battery voltage: DC192V/DC216V/DC220V/DC240V/DC360V/DC384V Battery type: Gel battery or Lithium-ion battery AC output voltage: three phase 208V or 380V/400V/415V

GBP series lithium iron phosphate batteries are a new type of environmentally friendly backup power supply launched for energy storage and power backup applications. The system adopts environmentally friendly lithium iron phosphate batteries and equipped with a customized BMS system for effective management of the battery cells, providing superior product performance and safety and reliability compared to traditional batteries. The product has a high number of charge and discharge cycles, high power density and long service life. Unique design and innovation in compatibility, energy density, dynamic monitoring, safety, reliability and product appearance can bring users a better experience in energy storage applications.

Characters Transformerless with three level topology Max efficiency up to 98.6% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication Component brands Specification Model No ST17KTL ST20KTL ST25KTL DC side/Input parameters Max. DC power [W] 18500 22000 25000 Max. DC voltage [Vdc] 1000Vdc. 1000Vdc. 1000Vdc Min. System start/Shut down voltage [Vdc] 250 250 250 MPPT voltage range[Vdc] 250~850 250~850 250~850 Max. input current [A] 25A*2 25A*2 25A*2 Number of MPP trackers 2 2 2 Strings per MPP tracker 2 2 2 AC side/output parameters Nominal output power [W] 17000 20000 25000 Maximum output power [W] 18500 22000 27000 Nominal output voltage/range [V] 400V/ 280-490V（adjustable) AC grid frequency/range [Hz] 50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz Maximum output current [A] 25 30 36 AC connection(with PE) 3W/N/PE 3W/N/PE 3W/N/PE Current distortion(THDi) [%] <1.5 <1.5 <1.5 Power factor [%] >99.95 >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98.5 98.6 98.8 European efficiency[%] 98.1 98.2 98.3 MPPT efficiency[%] 99.9 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters Dimension(L/W/H)[mm] 505*525*245 Weight (kg) 37 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects
